Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Supply Ability : 10 sets /month

Inlet Outlet PipeDiameter : 2-1/2"

Weight : 1100

Brand Name : Hailos

Model : HLS-25A-LT

Model Number : HLS-25A-LT

Cooling capacity (KW) (low temperature unit) : 52.5

MOQ : 1

Delivery Time : 5-8 weeks

Control Method : External equalizer thermal expansion valve

Chilled Water Flow : 12.5

Payment Terms : T/T

Cooling Air Volume : 26000

Price : $5000~$20000

Compressor : Scroll or Piston

Certification : ISO、CE

Power : 3P-380/415V-50/60HZ

Place of Origin : China

Refrigerant : R22/R404a/R407c

Packaging Details : wooden cartons

Dimensions : 2580*910*2020

Contact Now

Small Footprint Low Temperature Water Chiller Easy Maintenance For Laser Low Temp Processing

Product Introduction

Maximize your return on investment with our corrosion-resistant ultra-low temperature chiller. Understanding the aggressive nature of process cooling, we utilize special materials and advanced anti-oxidation processes for the evaporator, ensuring longevity even with harsh coolants. The unit is fully compatible with Ethylene Glycol, Propylene Glycol, and Salt Brine, allowing you to select the safest and most effective heat transfer medium for your application. Coupled with a high-efficiency imported compressor and a robust, anti-rust painted cabinet, this chiller is designed to withstand harsh industrial environments while delivering consistent, deep cooling performance down to -40°C.

Technical Parameters
Model/Watertemperature HLS-3A-LT HLS-4A-LT HLS-5A-LT HLS-8A-LT HLS-10A-LT HLS-15A-LT HLS-20A-LT HLS-25A-LT HLS-30A-LT HLS-40A-LT
Cooling
capacity
(KW)
(low
temperature
unit)		 0 6.1 8.3 10.6 17 20.8 27.3 43.2 52.5 64.8 86
-5 5.05 8.95 8.55 13.9 17.2 22.1 36.3 40.6 54.5 70.2
-10 4.25 5.7 7.2 11.4 14.25 17.6 28.6 31.8 43.2 57.9
-15 3.5 4.65 5.9 9.2 10.8 14.3 22.2 24.4 34.3 45.2
Cooling
capacity
(KW)
(ultra-low
temperatu
re unit))		 -20 4.64 5.89 7.03 8.39 10.28 16.7 19.88 24.9 29.3 32.8
-25 3.59 4.54 5.52 6.43 7.76 12.74 15.32 19.02 22.6 25.2
-30 2.71 3.42 4.09 4.8 5.68 9.41 11.47 14.09 16.91 18.83
-35 1.99 2.5 2.99 3.47 3.99 6.62 8.26 10 12.18 13.46
-40 1.41 1.76 2.1 2.39 2.62 4.33 5.62 6.65 8.27 8.99
Power Volt 3P-380/415V-50/60HZ
Refrigerant Type R22/R404a/R407c
Control
Method		 External equalizer thermal expansion valve
Compressor Type Scroll or Piston
Power 2.25 3 3.75 5 7.5 11 15 18.75 22.5 30.1
CoolingAir
Volume		 m3/h 3400 4500 5600 8800 11000 16000 21000 26000 32000 43000
Inlet Outlet PipeDiameter 3/4- 3/4" 1" 1-1/2" 1-1/2" 2" 2" 2-1/2" 2-1/2" 3"
ChilledWaterFlow 1.5 2 2.5 5 5 7.5 10 12.5 15 21.2
Dimensions Length(L) 1070 1070 1165 1540 1540 1780 2030 2580 2580 2030
Width(W) 600 600 680 780 780 830 910 910 910 1800
Height(H) 1370 1370 1540 1690 1690 1750 1925 2020 2020 2000
weight (Kg) 170 250 270 370 520 790 880 1100 1280 1420

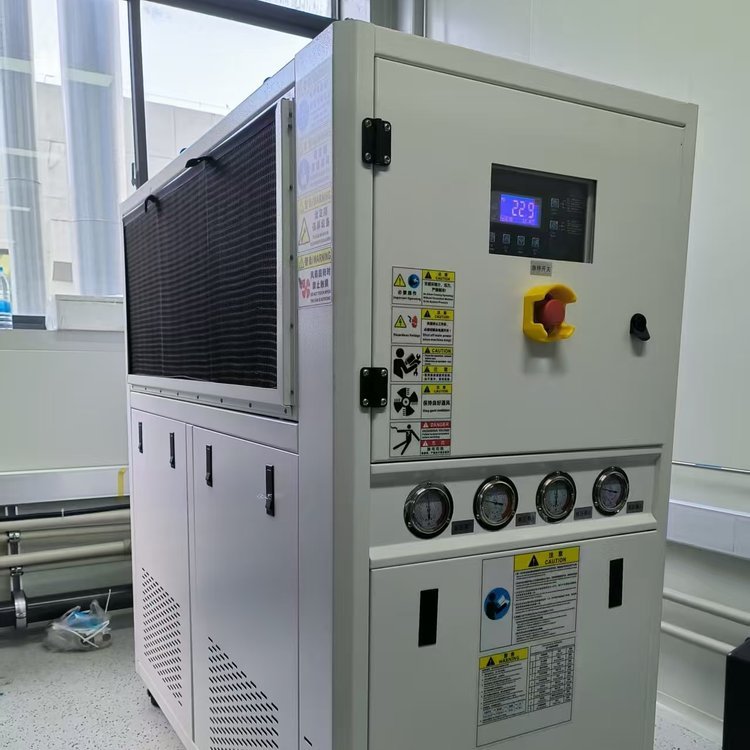

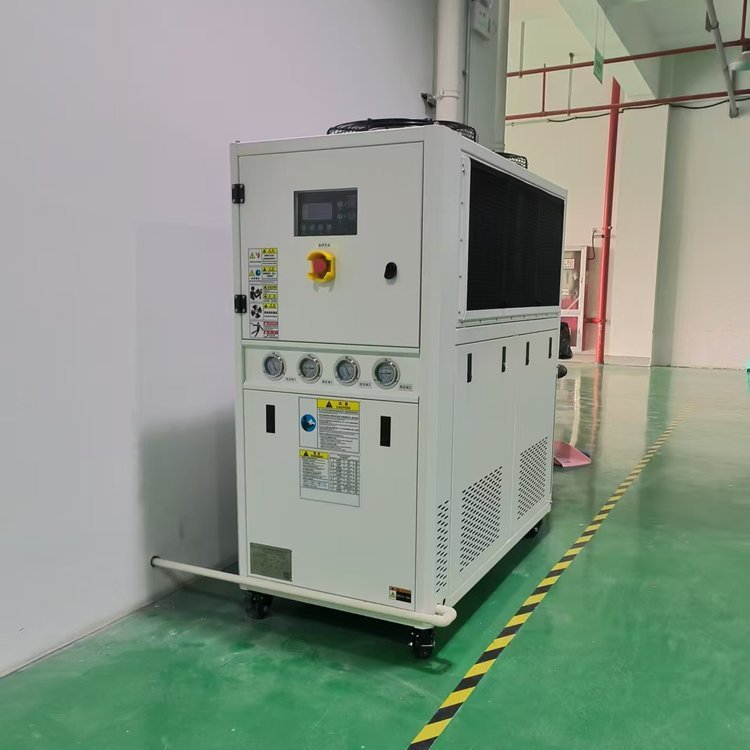

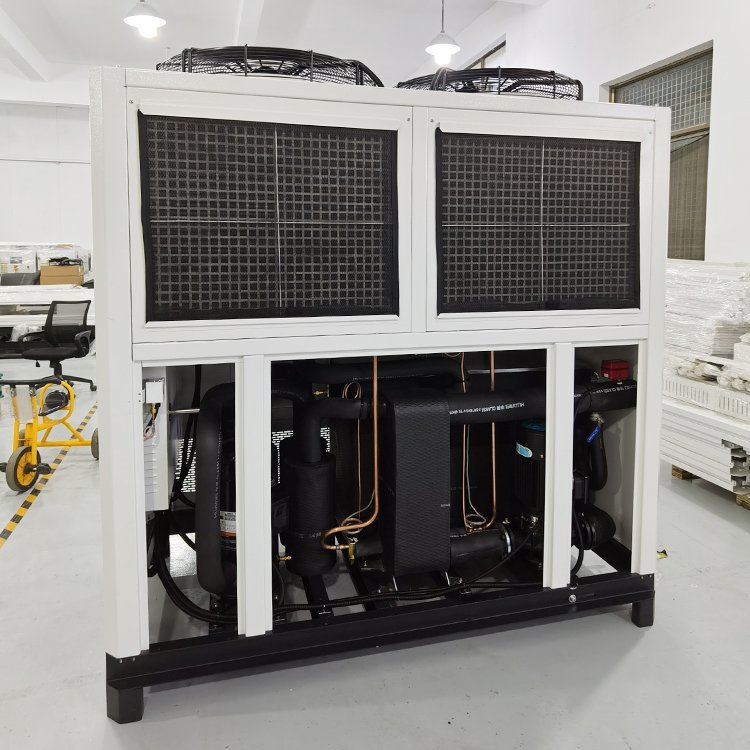

Product Photo

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Certificate ( CE /ISO )

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

Packing

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

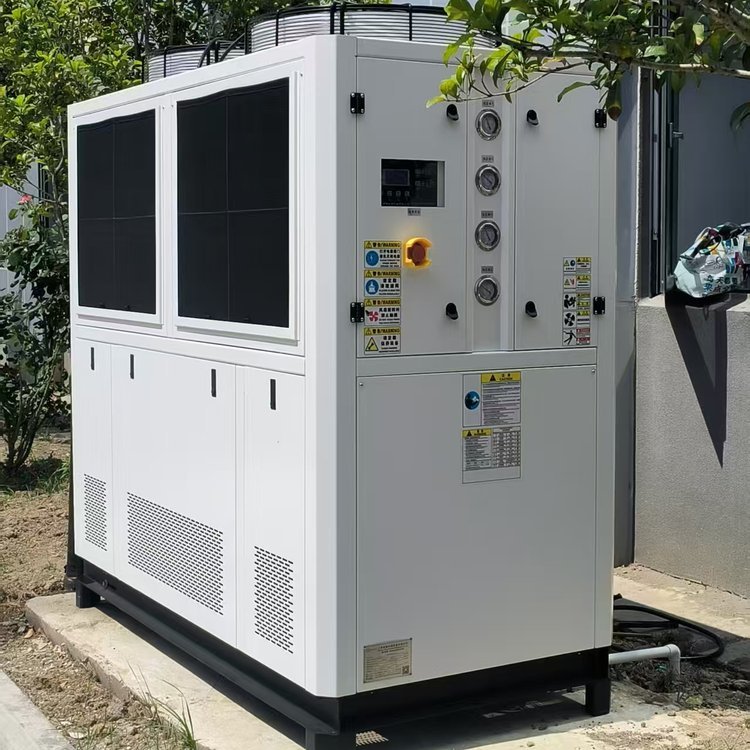

Project Case

Robust Cryogenic Recirculating Low Temperature Water Chiller Anti Oxidation

FAQ
Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?
A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.
Q2: What is your MOQ (Minimum Order Quantity)?
A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.
Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?
A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.
Q5: Can precision air conditioner work all year round without shutdown?
A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.
Q6: Can I adjust temperature and humidity remotely?
A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.
Q7: What refrigerants do you use for precision AC?
A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.
Q8: Do you support OEM / ODM customized service?
A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
Q9: Do you provide technical drawing and parameter sheet?
A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.
Q10: Can you supply spare parts separately?
A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
